STEP 1: Motor Wire Removal

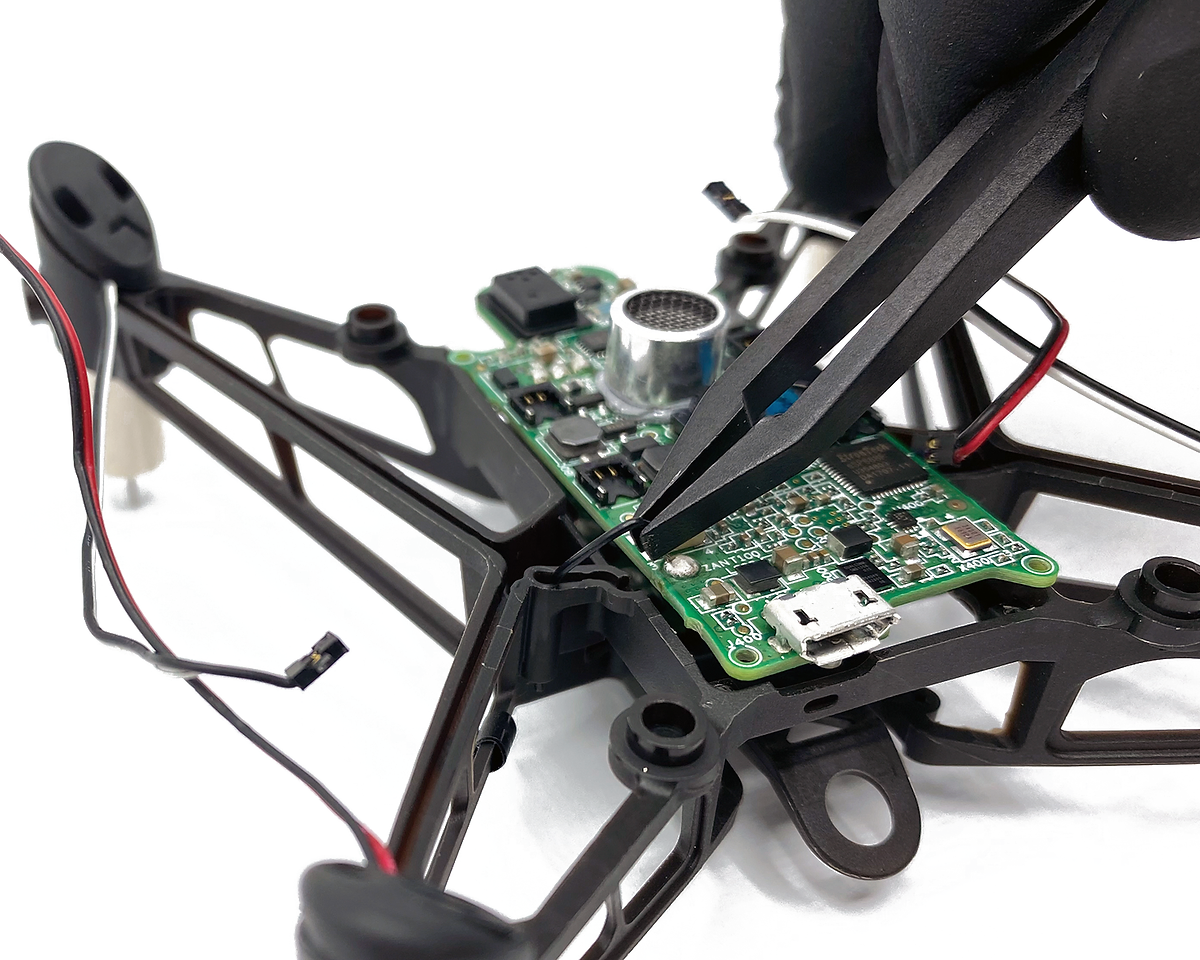

Hold the Central Body while simultaneously holding down the PCB using the thumb and middle finger. Using the tweezers, firmly grab the end of the motor wire closest to the port and detach it by pulling upwards away from the PCB (perpendicular to the PCB). Lastly, pull the motor wire out of the Central Body channel. Repeat this process for all FOUR motors.

MOTOR CONNECTION REMOVAL​

When removing the Motor Connection Wire from the PCB, it is important to remember to pull UPWARDS, perpendicular to and away from the PCB.​

DO NOT pull parallel to the PCB - this will most likely damage the terminal on the PCB, rendering the PCB useless.

STEP 2: Antenna Removal

The drone may or may not be equipped with an Antenna wire (located next to the Power Button). If it is, remove the Antenna wire from the hole located next to the Antenna on the Central Body. If it does not have an Antenna there is no concern, proceed to the next step.
