Disassemble Mambo

REMOVING BODY PANELS

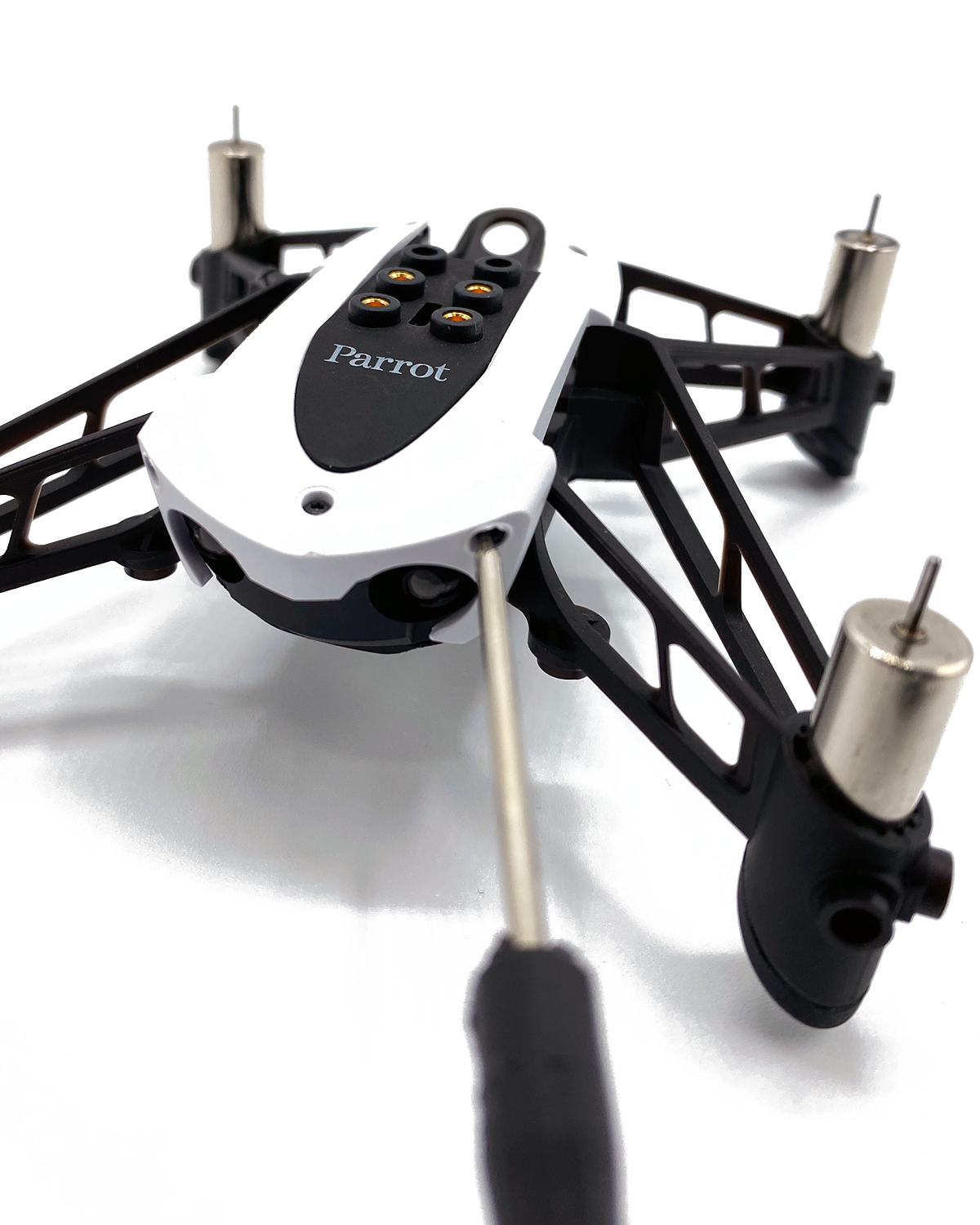

STEP 1: Front Outer Body Panel Removal

Remove the Front Outer body panel.



ree

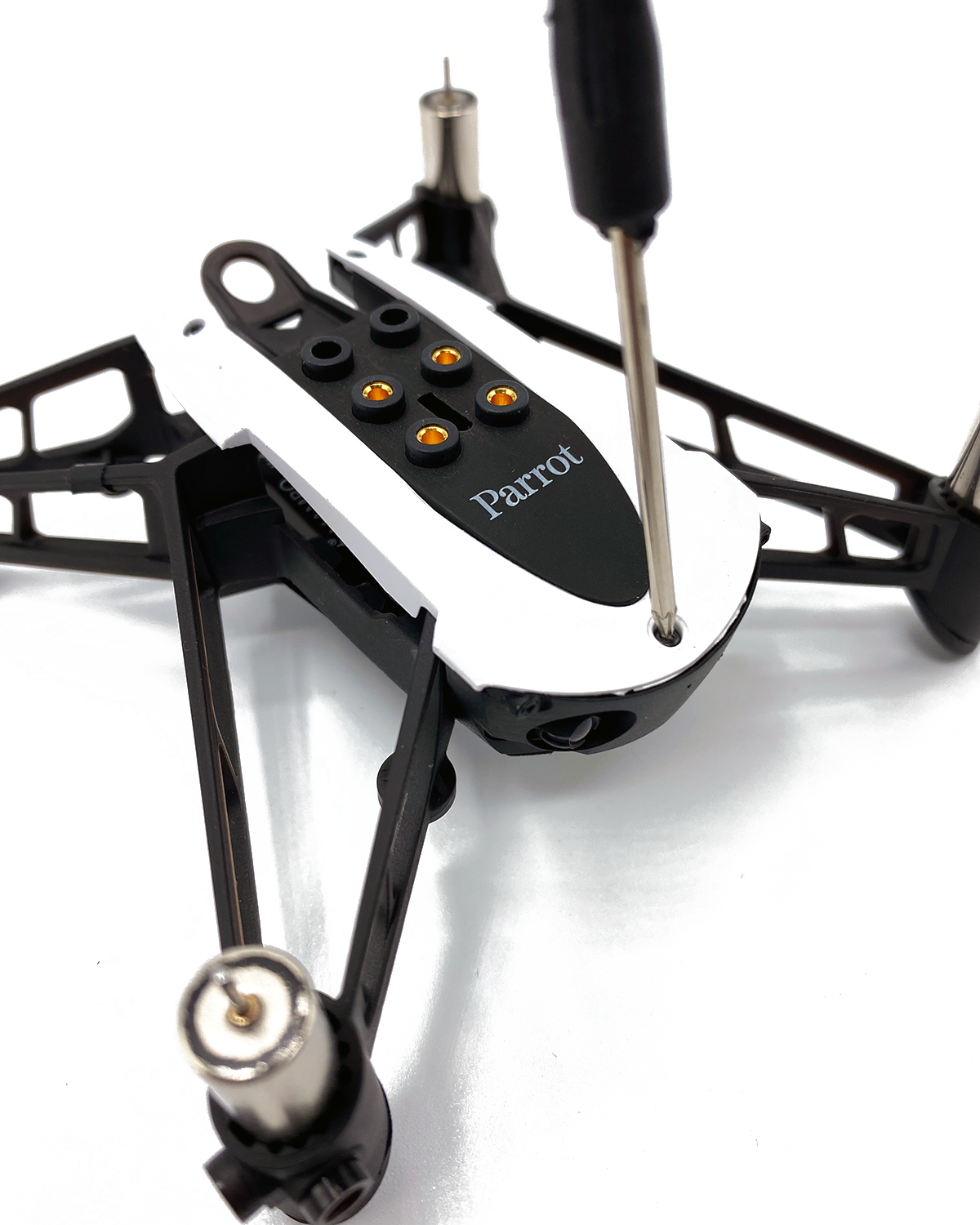

STEP 2: Top Body Panel Removal

Remove the Top body panel.



ree

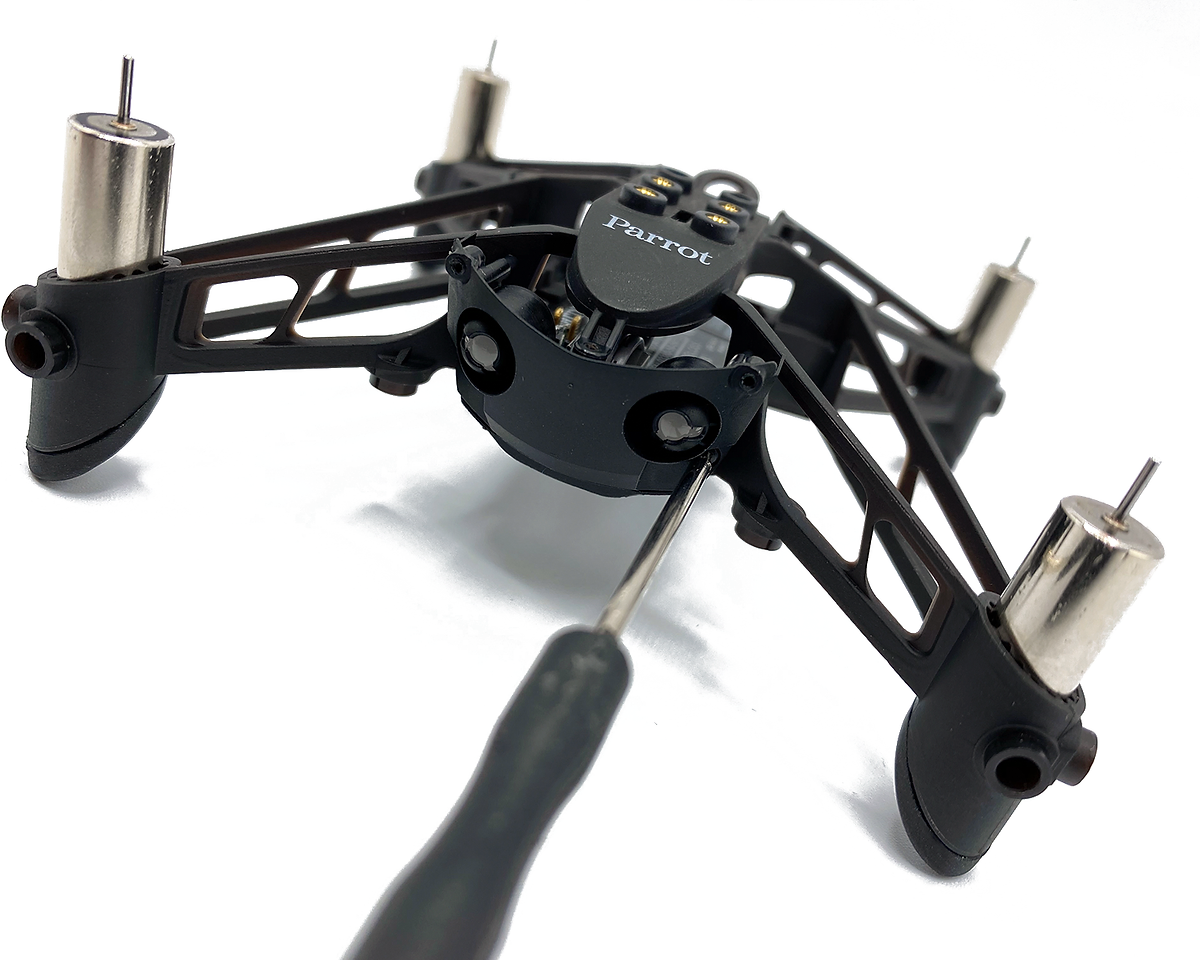

STEP 3: Inner Front Body Panel Removal

Remove the Inner Front body panel from the Central Body.



ree

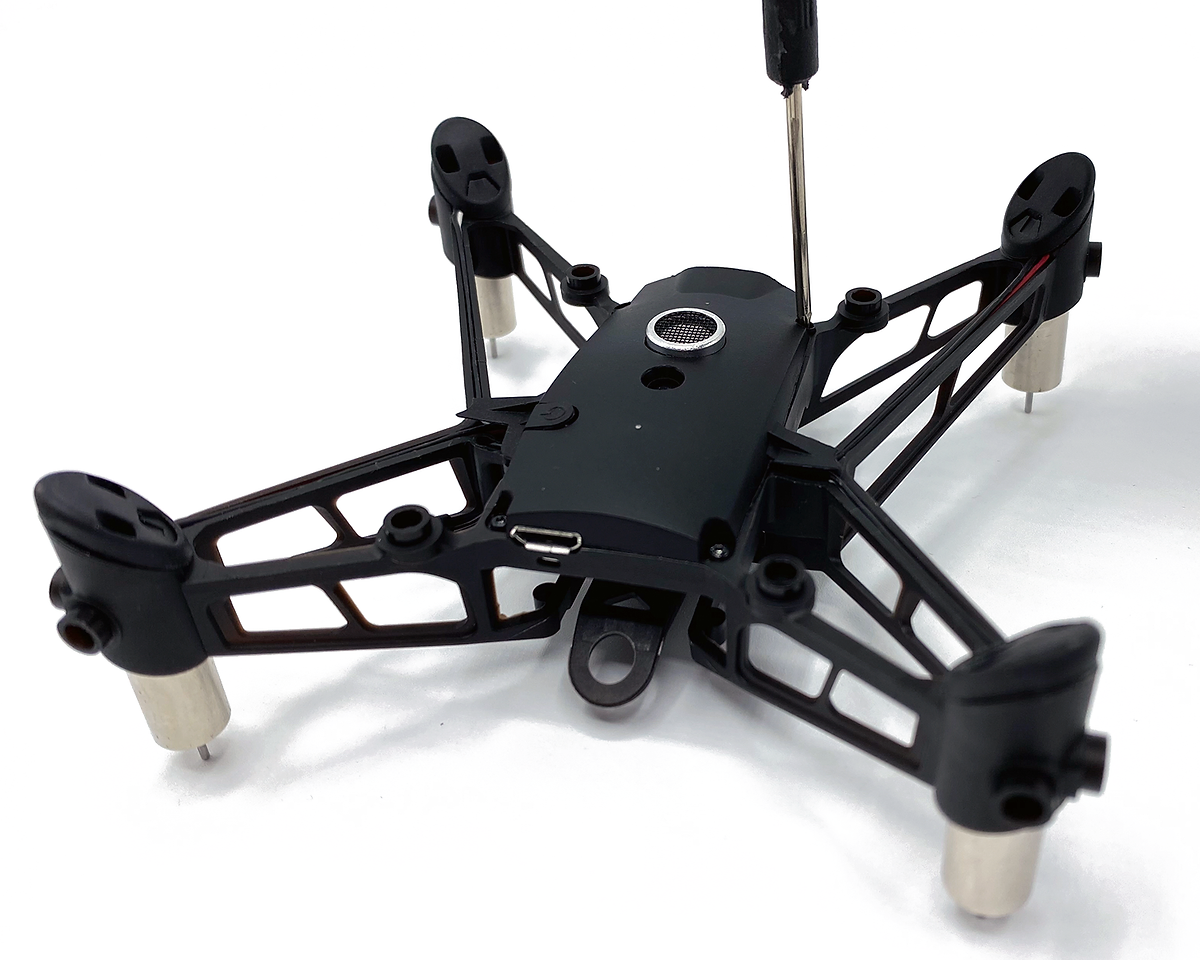

STEP 4: Bottom Body Panel Removal

Remove the Bottom body panel from the Central Body to expose the PCB.



ree
